| Machine reference | COLA 063 |
| Manufacturer | DCM |
| Type | LAMINASTAR |
| Model | 2 |
| Year | 208 |
| Type of application | Solventless |
| Type of coating & laminating | Solventless |
| product to be coated/laminated | Flexible packaging film and alu |
| Web width (mm) | 1060 mm |
| Working width (mm) | 1050 mm |
| Speed (m/min) | 360m/min max |
| Primary unwinder | Shaftless, mono, motorized, Single shafted. Pneumatic shaft core dia. 3″, 6″. Brake Merobel FRAT 2000. Ultrasonic sensor, reel pick-up from the floor. FIFE web guiding, shifting system. Tension range : 30-400N. Reels weight : 1500 kg |
| Reels diameter (mm) | 1000 mm |
| Secondary unwinder | Double bracket. Pneumatic shaft core dia. 3″, 6″. Brake Merobel FRAT 2000. Ultrasonic sensor. Pneumatic dancing roller, hoist for reels loading, FIFE web guiding, shifting system. Tension range : 30-400N. Reels weight : 1500 kg |
| Reels diameter (mm) | 1000 mm |

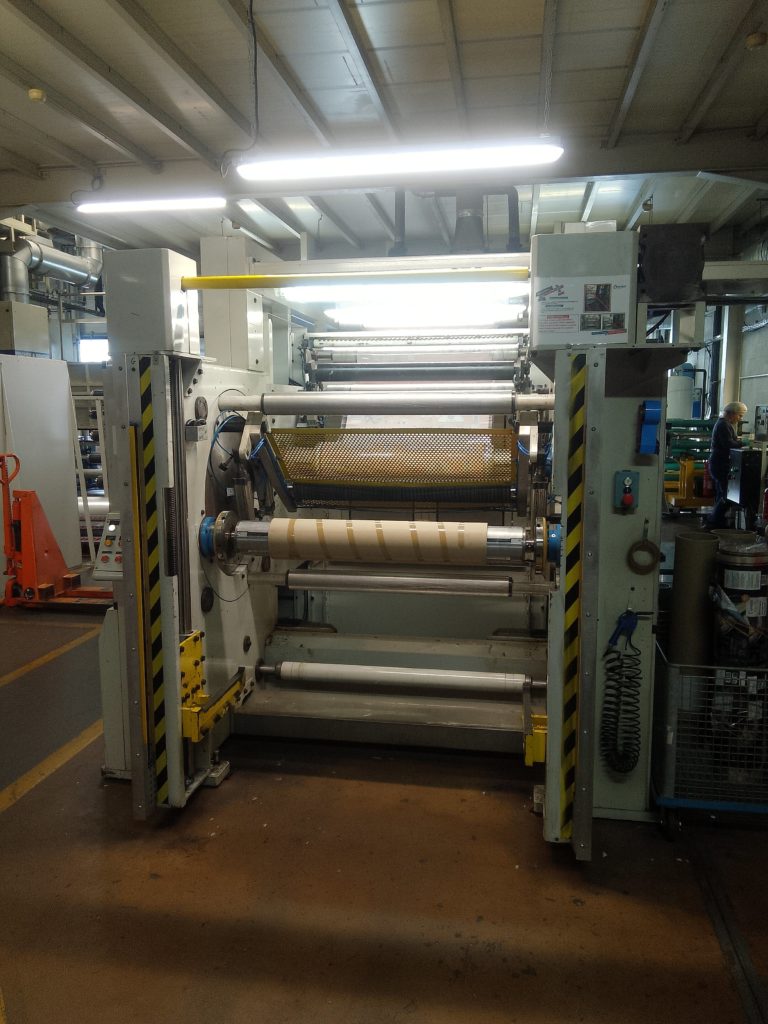

| Rewinder | non stop rewinder. Pneumatic shaft core dia. 3″, 6″. Pneumatic dancing roller, reels unloading device. Tension range : 40-400N. Reels weight : 1500 kg |
| Reels diameter (mm) | 1000 mm |

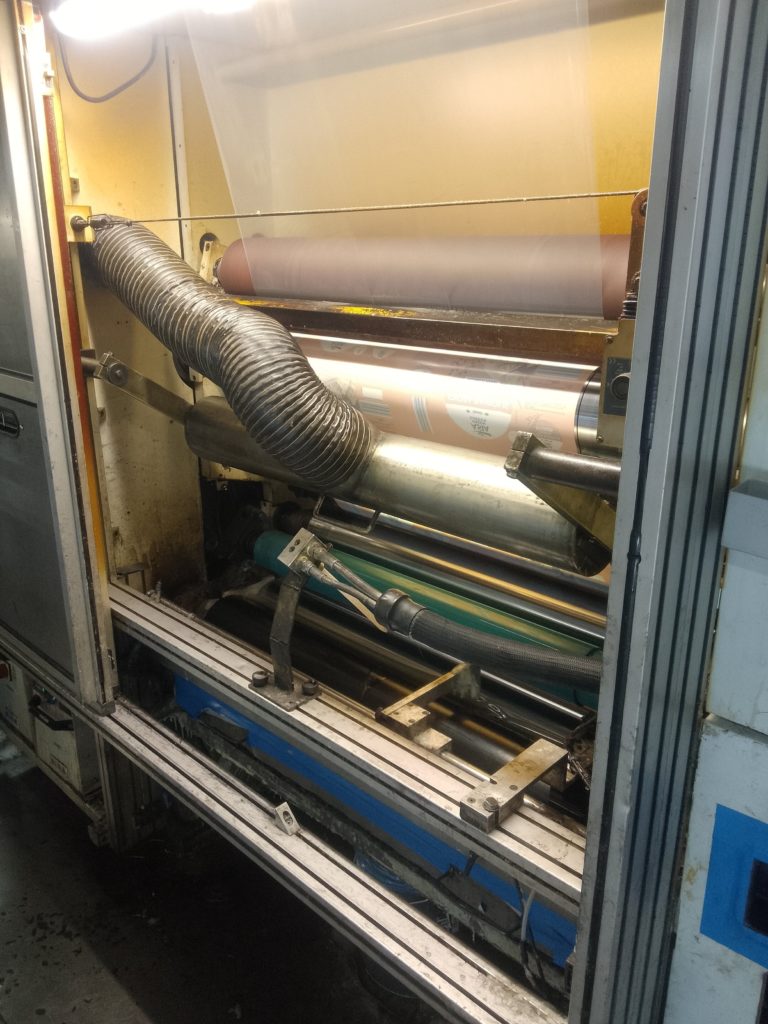

| Coating unit | Solvent-free coating unit, sleeve system, laminating station |
| Drying system | No |
| Web guide system | FIFE device for primary and szecondary unwinder |
| Mixer / Pumps | VEA matrix |
| Register Control | No |

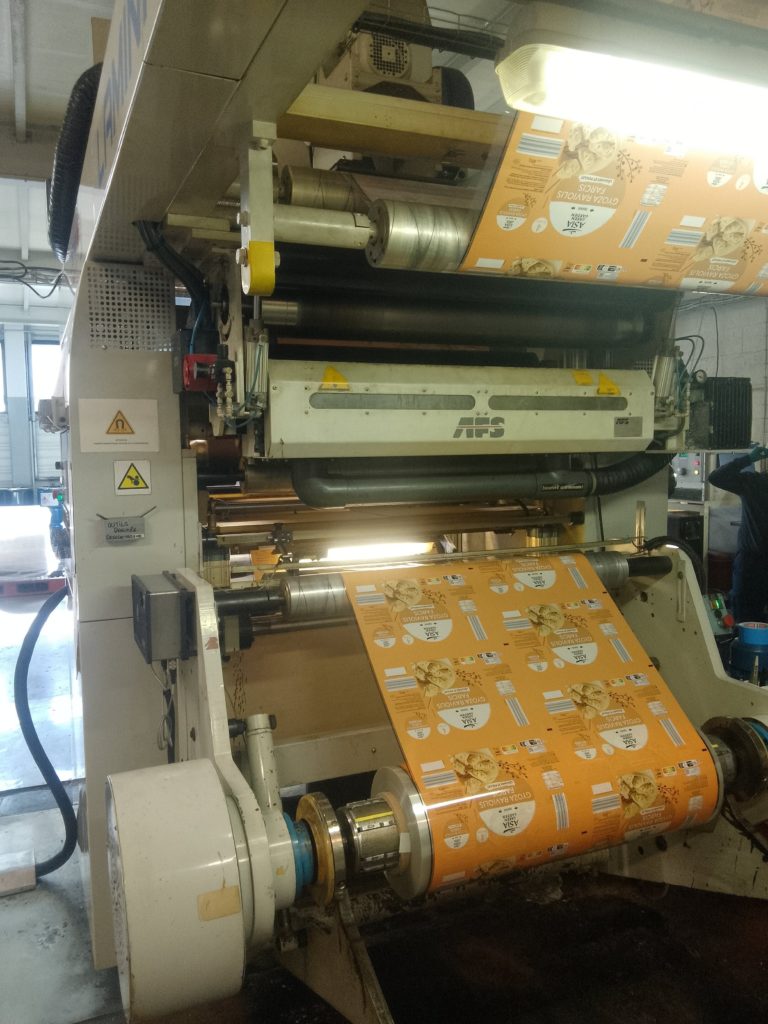

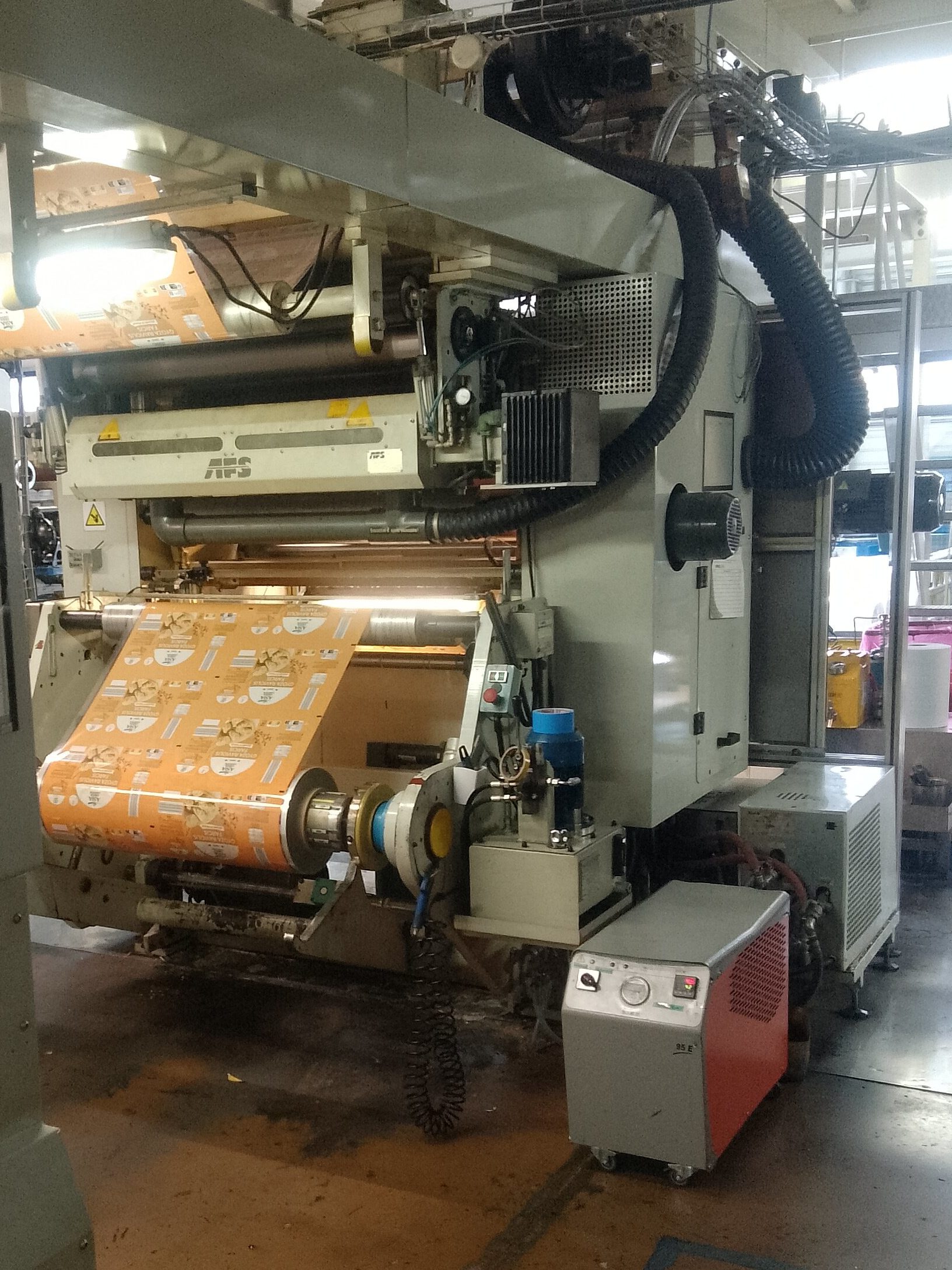

| Corona treatment | AFS for primary and secondary unwinder |
| Additional information | Electrical cabinet |
